Charleston Square

Charleston Square

Shower mixer - Concealed wall-valve-modul assembly set - Article No. 634.60.432.xxx

634.60.432.xxx
Concealed wall-valve-modul assembly set

Description

design handle
escutcheon

this requires:
649.20.610 | Concealed wall-valve-modul, single
649.20.620 | Concealed wall-valve-modul, double
649.20.630 | Concealed wall-valve-modul, triple

This is required

649.20.610.xxx

Concealed wall-valve-modul, single

649.20.620.xxx

Concealed wall-valve-modul, double

649.20.630.xxx

Concealed wall-valve-modul, triple

Finishes

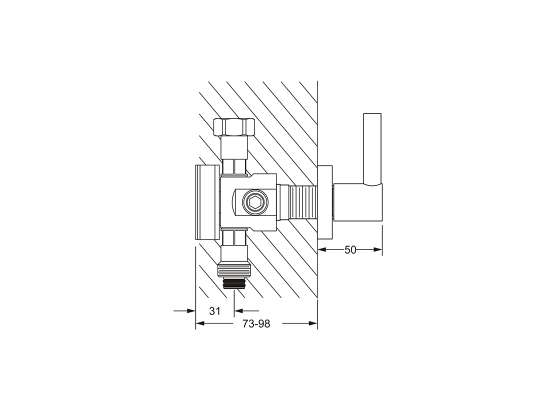

Specification drawing (mm)

634.60.432.xxx Specification drawing mm

Technical Data - Download

Product data sheet
pdf 52 KB Download
