Palazzo Crystal

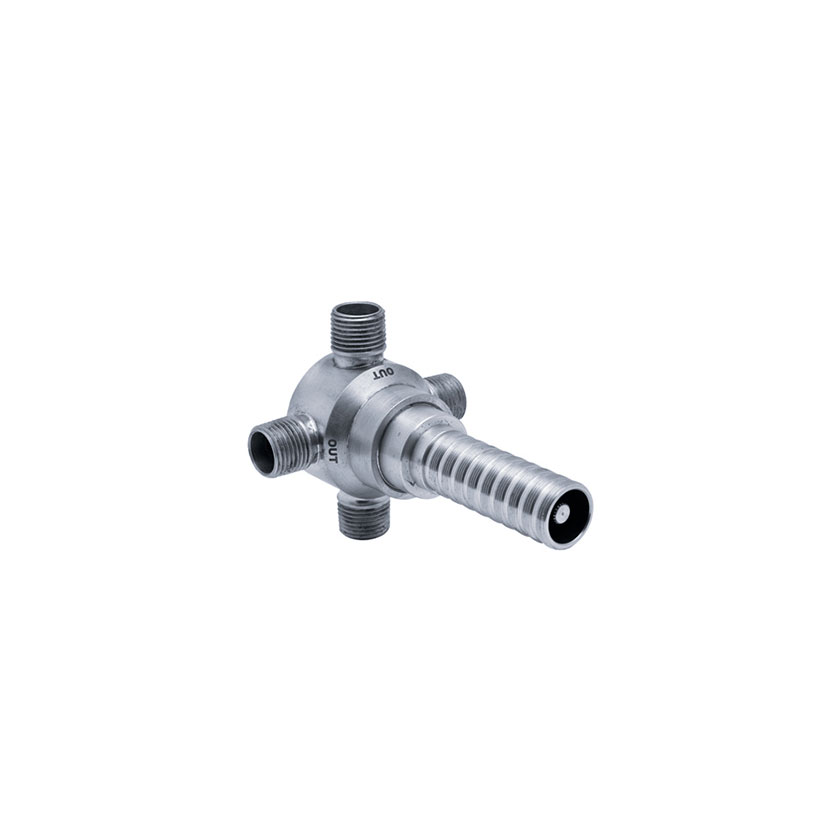

Shower mixer - Article No. 649.40.620.xxx

649.40.620.xxx
4-port,3-way dedicated diverter, rough only

Description

  • for assembly set XXX.60.432 or XXX.60.435
  • solid brass construction; ceramic disc cartridge
  • must use with volume control trim
  • ½"M NPT inlet; 3 x ½"M NPT outlets
  • flow is dedicated. May not be split into two outlets at once
  • flow rate 5 GPM at 60 PSI
  • CALGreen compliant
  • ASME A112.18.1, CSA B125 and ASSE 1016 standards compliant

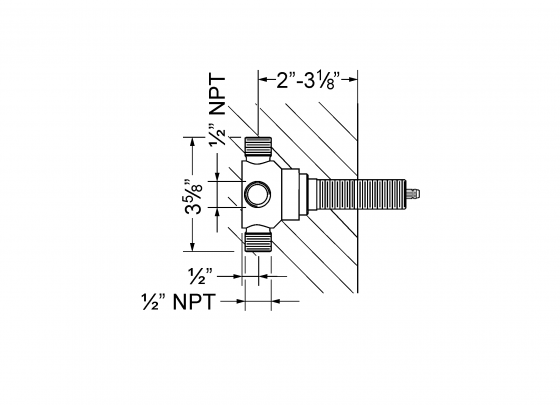

Specification drawing (inch)

649.40.620.xxx Specification drawing inch

Technical Data - Download
